Product Details:
Payment & Shipping Terms:
|
| Screw Type: | Tapping Screw / Plastite Screw | Material Grade: | SUS304, 316, A2, A4, 18-8, 18-10 |
|---|---|---|---|
| Finish: | Plain / Passivated | Head Type: | Washer Head |
| Drive Type: | Torx / Star | Thread Type: | PT |
| Diameter: | 1.4mm ~ 10.0mm | Length: | 3.0mm ~ 100mm |

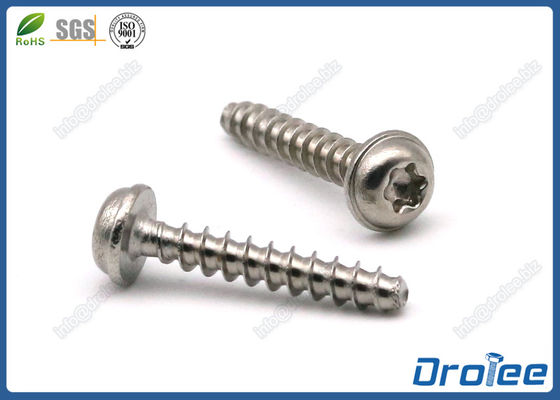

WN 5451 304/316 Stainless Steel Washer Head Torx PT Thread Tapping Screws
The PT Screw is a direct thread forming screw for use in plastic materials, providing high clamp loads and reduced material stress. An excellent alternative to the use of threaded inserts.
| Dimensions | 14 | 16 | 18 | 20 | 22 | 25 | 30 | ||
| External thread diameter | 1.40 | 1.60 | 1.80 | 2.00 | 2.20 | 2.50 | 3.00 | ||
| Core diameter | 0.93 | 1.07 | 1.22 | 1.36 | 1.51 | 1.72 | 2.09 | ||
| Thread pitch | 0.57 | 0.64 | 0.71 | 0.78 | 0.85 | 0.95 | 1.12 | ||
| Thread run-out | X | max. | 0.70 | 0.80 | 0.90 | 1.00 | 1.10 | 1.30 | 1.50 |
| Head Diameter | D | 3.20 | 3.60 | 4.00 | 4.50 | 5.00 | 5.50 | 6.50 | |
| Head Height | K | 1.15 | 1.20 | 1.35 | 1.60 | 1.60 | 1.90 | 2.30 | |
| Washer Thickness | s | 0.50 | 0.60 | 0.60 | 0.60 | 0.60 | 0.70 | 0.80 | |
| Radius | R | max. | 0.20 | 0.25 | 0.25 | 0.35 | 0.35 | 0.40 | 0.50 |
| Torx Size | 3 IP | 5 IP | 6 IP | 6 IP | 6 IP | 8 IP | 10 IP | ||
| Recess Width | A | ref. | 1.20 | 1.45 | 1.75 | 1.75 | 1.75 | 2.40 | 2.80 |
| Recess penetration depth | t | min. | 0.40 | 0.50 | 0.50 | 0.65 | 0.65 | 0.80 | 1.00 |
| max. | 0.55 | 0.65 | 0.65 | 0.85 | 0.85 | 1.00 | 1.30 | ||
| Dimensions | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | ||
| External thread diameter | 3.50 | 4.0 | 4.50 | 5.00 | 6.00 | 7.00 | 8.00 | 10.00 | ||
| Core diameter | 2.45 | 2.81 | 3.17 | 3.53 | 4.26 | 4.98 | 5.70 | 7.15 | ||
| Thread pitch | 1.29 | 1.46 | 1.63 | 1.80 | 2.14 | 2.48 | 2.82 | 3.50 | ||
| Thread run-out | X | max. | 1.80 | 2.00 | 2.30 | 2.50 | 3.00 | 3.50 | 4.00 | 5.00 |
| Head Diameter | D | 7.50 | 9.00 | 10.00 | 11.00 | 13.50 | 15.50 | 18.00 | 21.50 | |
| Head Height | K | 2.70 | 3.10 | 3.20 | 3.50 | 4.20 | 5.10 | 5.60 | 6.60 | |
| Washer Thickness | s | 0.90 | 1.00 | 1.10 | 1.20 | 1.40 | 1.60 | 1.80 | 2.20 | |
| Radius | R | max. | 0.50 | 0.60 | 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.10 |
| Torx Size | 15 IP | 20 IP | 20 IP | 25 IP | 30 IP | 30 IP | 40 IP | 50 IP | ||
| Recess Width | A | ref. | 3.35 | 3.95 | 3.95 | 4.50 | 5.60 | 5.60 | 6.75 | 8.95 |
| Recess penetration depth | t | min. | 1.10 | 1.40 | 1.40 | 1.50 | 1.90 | 2.30 | 2.60 | 3.00 |
| max. | 1.50 | 1.80 | 1.80 | 1.90 | 2.40 | 2.90 | 3.20 | 3.50 | ||
